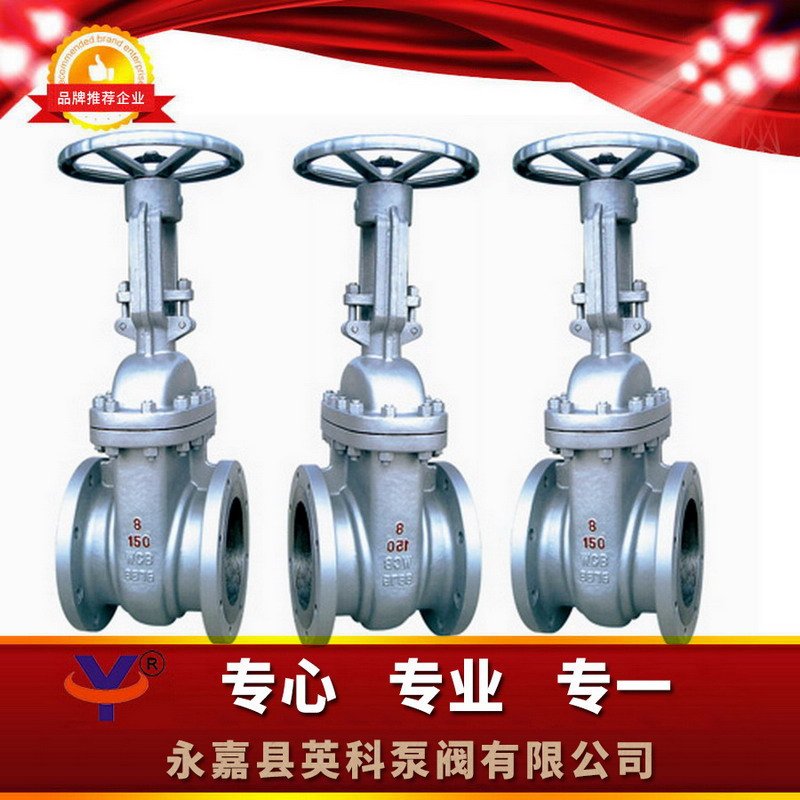

Z40W美标不锈钢闸阀产品规范
1.设计制造按APISTD.600
2.结构长度按ANSI B16.10 .
3.法兰型式及尺寸:150/300/600Lb安ANSI B16.5 JIS 10K.20k按JIS B2212～B2214
4.阀门检查和试验按APL STD.598
Z40W美标不锈钢闸阀性能参数
体盖瓣 Body Cover Disc | 阀杆 | 密封面 | 垫片(环) | 填料 Packing | 工作温度℃ Working Temperature | 适用介质Suitable Medium |
WCB | 2Cr13 | 13Cr | 增强柔性石墨 13Cr/柔性石墨Enhanced Flexible Graphite | 柔性石墨 增强柔性石墨 | ≤425 | 水 蒸汽 油品 |
WC1 | 38CrMoAl 25Cr2MoV | ≤425 | ||||
WC6 | ≤540 | |||||
WC9 | ≤570 | |||||
C5 C12 | ≤540 | |||||
CF8 | F304 | ≤200 |
| |||
CF8M | F316 | |||||
CF3 | F304L | |||||
CF3M | F316L |
Z40W-150LB美标不锈钢闸阀外形连接尺寸
DN | 150Lb凸面法兰(RF) 主要尺寸 Dimensions(mm) | 重量(kg) Weight | ||||||||
mm | in | L | D | D1 | D2 | b | n-φd | H | D0 | |
15 | 1/2 | 108 | 89 | 60.5 | 35 | 11.2 | 4-16 | 169 | 100 | 5 |
20 | 3/4 | 117 | 98 | 69.9 | 43 | 12.7 | 4-16 | 192 | 100 | 6.1 |
25 | 1 | 127 | 108 | 79.2 | 51 | 14.2 | 4-16 | 230 | 120 | 9 |
32 | 11/4 | 140 | 117 | 89 | 63 | 16 | 4-16 | 246 | 120 | 12 |
40 | 11/2 | 165 | 127 | 98.6 | 73 | 17.5 | 4-16 | 283 | 150 | 17 |
50 | 2 | 178 | 152 | 120.7 | 92 | 19.0 | 4-19 | 323 | 150 | 23 |
65 | 21/2 | 190.5 | 178 | 139.7 | 105 | 22.4 | 4-19 | 347 | 180 | 45 |
80 | 3 | 230 | 190 | 152.4 | 127 | 24 | 4-19 | 383 | 200 | 50 |
100 | 4 | 229 | 229 | 190.5 | 157 | 24 | 8-19 | 457 | 200 | 63 |
125 | 5 | 254 | 254 | 216 | 186 | 24 | 8-22.5 | 632 | 250 | 89 |
150 | 6 | 267 | 279 | 241.5 | 216 | 25.4 | 8-22.5 | 635 | 250 | 108 |
200 | 8 | 292 | 343 | 298.5 | 270 | 28.4 | 8-22.5 | 762 | 280 | 171 |
250 | 10 | 330 | 406 | 362 | 324 | 30.2 | 12-25.4 | 892 | 300 | 263 |
300 | 12 | 356 | 483 | 431.8 | 381 | 32 | 12-25.4 | 1080 | 350 | 346 |
350 | 14 | 381 | 533 | 476.3 | 413 | 35 | 12-29 | 1295 | 350 | 488 |
400 | 16 | 406 | 597 | 539.8 | 470 | 36.6 | 16-29 | 1435 | 400 | 621 |
450 | 18 | 432 | 635 | 577.9 | 533 | 39.6 | 16-32 | 1626 | 400 | 814 |
500 | 20 | 457 | 398 | 635 | 584 | 43 | 20-32 | 1829 | 450 | 992 |
Z40W-300LB美标不锈钢闸阀外形尺寸
