手套箱投料：

针对堆积密度比较小，易产生粉尘飞扬、对人体和环境有毒有害的粉体，采用手套箱卸料系统是**的选择。

手套箱投料的特点： ◆结构简单紧凑，操作方便 ◆体积小，可移动，适用范围广 ◆在整个卸料过程中，全密闭操作，操作人员不和物料有任何接触 ◆空料袋集中回收，防止袋内残余物料外泄 ◆与集尘系统配套使用，彻底杜绝粉尘 ◆可采用N2保护，应用于防爆环境   主要技术参数：  ◆手套箱材质：304、316L或碳钢 ◆ 手套口直径：Ø160mm ◆手套口高度：1100 mm ◆料仓的容积：根据客户需求定制 ◆手套的材质：氯丁橡胶、天然橡胶 ◆手套箱外形尺寸与规格： 单仓门：1000×700×1500 双仓门：2000×700×1500 可根据客户要求定制

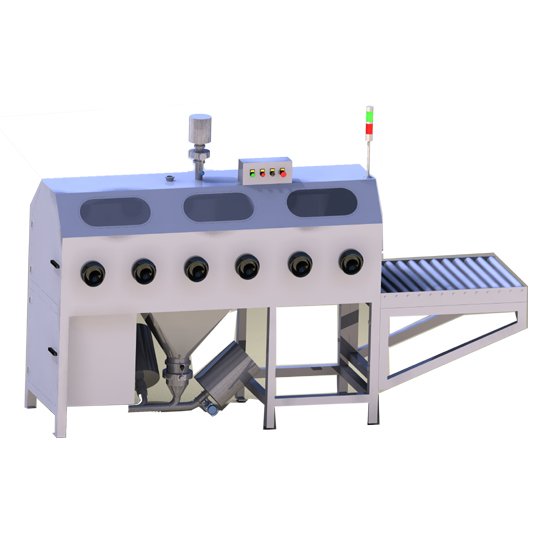

Glove-box discharging system

Glove-box  discharging system would be the best choice referring to powder with  low accumulation density and harmfulness to human body and environment.

Main characteristics

Simple and compact configuration and easy operation;

Small size, good mobility and wide application;

Airtight processing to ensure that the operator is separated from materials;

Recovery of used big bag avoiding leaking out of remnant;

Applied with dust-collecting system to completely avoiding dust pollution;

Nitrogen is used in explosion-proofing.

Pneumatic vacuum conveyer

Glove box

Discharging platform

Discharging materials holder

Main parameters

Glove box materials: 304,316L or carbon steel;

Glove diameter: Ø160mm;

Glove height: 1,100 mm;

Silo volume: customized according to customer’s demand

Glove material: chloroprene rubber and natural rubber;

Glove-box dimensions and specifications:

     Single port: 1000×700×1500

     Double ports: 2000×700×1500

customized according to customer’s demand
