LS螺旋输送机-参数-价格-中国粉体网

核心参数

输送距离：
2 米到 70 米
工作原理：
螺旋

相关资料

用户评论

公司动态

问商家

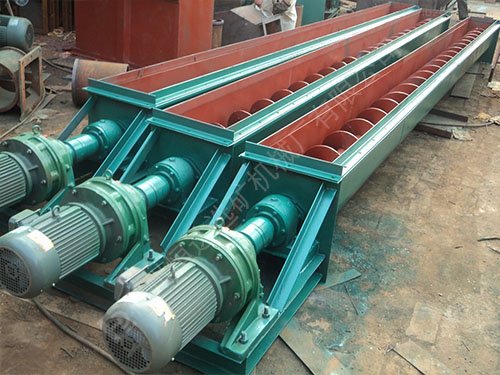

　　LS旋输送机是一种不带挠性牵引件的输送装置，螺旋输送机俗称绞龙，是矿产、饲料、粮油、建筑业中用途较广的一种输送设备，它适用于颗粒、粉状和小块状物料的水平输送，倾斜输送，垂直输送等形式，其输送距离从 2 米到 70 米，规格多种，并可根据客户需求制作。用途：能规则地控制和连续输送粉状和小块状物料，如粮食、饲料、煤粉、水泥、熟料、复混肥、砂、谷类、煤块、石子等。其结构简单新颖、维修方便、技术指标先进、横截面尺寸小，密封性能好，操作安全方便，便于中间装、卸料；中间吊轴承采用滚动式或滑动式两种结构，均设防尘、密封装置，操作维修方便。
　　LS screw conveyer is a kind of transportation device which does not bring flexible pull part .It is known as packing auger Screw conveyor is a widely used in mineral, animal feed, grain and oil, and construction industry transportation, it applies to horizontal ,tilt, and vertical transportation of particles, powder and small block materials, and other forms of transport, the transport distance from 2 meters to 70 meters and having many specifications. It can be produced according to customer’demands. Purpose: to control orderly and transport continually of powder and small block materials, such as food, feed, coal, cement, clinker, fertilizer, sand, grain, coal, gravel and so on.. Its structure is novel and simple. It is easy to maintain and have advanced technical indicators, a small size of cross-sectional, good sealability. It is safe and convenient to operate and easy to load and discharge in the middle; the middle suspension bearing have two structure -rolling bearings or slip. It is equipped with dust-proof, sealed device, and easy to operate and maintain.
　　主要型号及技术参数:
　　MAIN MODELS AND TECHNICAL PARAMETERS:

规格型号Model and specification		LS 100	LS 160	LS 200	LS 250	LS 315	LS 400	LS 500	LS 630	LS 800	LS 1000	LS 1250
螺旋直径Screw diameter(mm)		100	160	200	250	315	400	500	630	800	1000	1250
螺距Thread pitch(mm)		100	160	200	250	315	355	400	450	500	560	630
技术参数Technical parameter	n	140	112	100	90	80	71	63	50	40	32	25
	Q	2.2	8	14	24	34	64	100	145	208	300	388
	n	112	90	80	71	63	56	50	40	32	25	20
	Q	1.7	7	12	20	26	52	80	116	165	230	320
	n	90	71	63	56	50	45	40	32	25	20	16
	Q	1.4	6	10	16	21	41	64	94	130	180	260
	n	71	50	50	45	40	36	32	25	20	16	13
	Q	1.1	4	7	13	16	34	52	80	110	150	200

　　注:n-转速,r/min(偏差允许在10%范围内);Q-输送量,m3/h;表中Q值的填充系数为0.33.
　　GX螺旋输送机的结构型式与LS型螺旋输送机基本相同。
　　GX型螺旋输送机的螺旋直径有150、200、250、300、400、500、600mm七种，机长3-70m，可在环境温度为-20--50℃的条件下，以小于20°的倾角单向输送温度低于200℃的物料。
　　主要型号及技术参数:
　　MAIN MODELS AND TECHNICAL PARAMETERS:

规格型号Model and specification	GX150	GX200	GX250	GX300	GX400	GX500	GX600
输送能力Transportation capability(t/h)	9	9	16	22	51	88	135
转速Rev(r/min)	60	60	60	60	60	60	55
