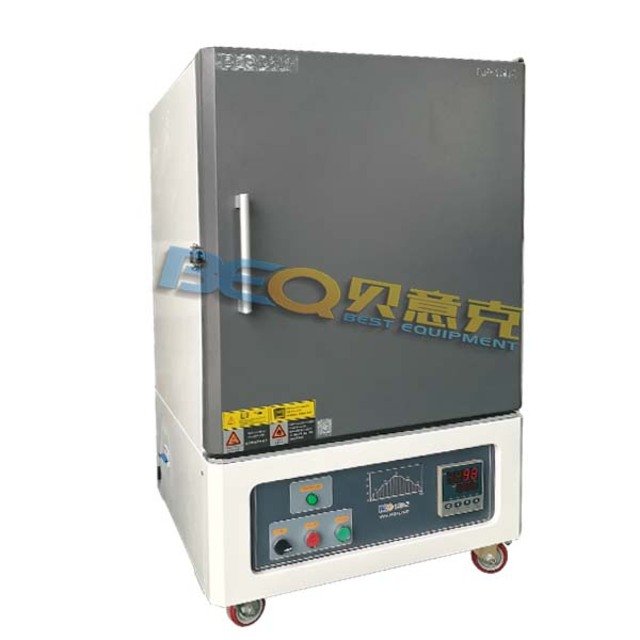

箱式炉MF-1200C-L/ Large muffle furnace

主要特点Main Features

Heat insulating materials adopt Alumina fiber inorganic ones, which is formed with vacuum absorption, environmental protecting and energy saving.

保温材料采用真空吸附成型的氧化铝纤维无机材料，环保节能;

Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.

炉体采用双层风冷结构，炉子烧到**温度时，壳体表面温度低于60℃

Made of various heat insulating materials to make furnace energy consumption less(electric consumption is only 25% of the same type furnace consumption)

采用多种保温材料组合制成，使炉子能量消耗少(耗电量是同类产品耗电量的四分之一)

技术参数Technical Parameters

视频展示

Power

输入电源

Power rated: 6KW (208-240V)

额定功率：6KW (208-240V)

Voltage

电压

Voltage rated: AC 208-240V 50/60HZ

额定电压：AC 208-240V 50/60HZ

Furnace Construction

炉子结构

High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands

采用高纯氧化铝作为炉膛材料，**程度减小能量损失，比一般加热炉减少30%能耗。

Double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.

炉体采用双层结构，中间设置风道，保证炉体表面温度和电气控制部分温度不超过60℃。

MF-1100C-S

The spring door buckle is used to solve the contraction gap caused by high temperature in the chamber of the equipment.

采用弹簧门扣，很好的解决了设备内膛因高温产生的收缩缝隙。

MF-1200C-L/

Working Temperature

工作温度

Max. Temperature: 1200℃( 1 hr)

**温度：1200℃ (1小时)

Continuous working temperature: ≤1100℃

持续工作温度：≤1100℃

Max. heating rate

**升温速率

50℃/min

50℃/分

Temperature Controll

控温方式

PID automatic control and auto-tune function.

模糊PID控制和自整定调节

30 programmable segments for precise thermal processing.

智能化30段可编程控制

Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

Thermocouple

热电偶

K type

K型

Heating Elements

加热元件

Fe-Cr-Al Alloy doped by Mo

电阻丝（掺钼铁铬铝合金）

Temperature Accuracy

控温精度

+/- 1℃

Dimensions

尺寸

MF-1200C-L

Chamber size(L*D*H): 400*400*400mm (64L)

腔体尺寸(长*深*高)：400*400*400mm (64L)

Furnace size(L*W*H): 650*620*940mm

炉子尺寸(长*宽*高)：650*620*940mm

Net Weight

净重

115kg

Packing dimensions(L*W*H)

包装尺寸(长*宽*高)

690*660*1000mm（wooden case）

690*660*1000mm（木箱）

Shipping weight

毛重

170kg

Warranty

质保

One year limited warranty with lifetime support (Such consumable parts as resistance wire are NOT supported by the warranty)

一年质保终身支持（消耗品如电阻丝不在质保范围内）

Attention

警示

The equipment is not sealed, and can not be put into toxic, harmful, inflammable and explosive gas. Can add the inlet port to pass through the inert gas or oxygen.

此设备腔体不密封，不能通入有毒有害，易燃易爆气体。可以加装进气接头，通惰性气体或者氧气

Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复。

You shall place the sample in to a crucible. Never place sample on the chamber bottom directly.

应该把样品放进坩埚里。不要把样品直接放在腔底。

Compliance

认证

CE Certified

CE认证

The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost.

可付费进行TUV(UL61010)或CSA认
