****的全面性!

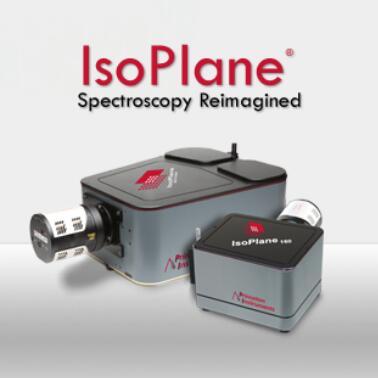

普林斯顿仪器不断创新的传统在这款屡获嘉奖的IsoPlane-320上再次得到展现，它独特的零像差光学设计让图像和光谱的分辨率大幅度提高，同时还拥有更强的光通量。其分辨率可以媲美1/2米焦长的光谱仪，却是其光通量的两倍，使得IsoPlane成为高要求低光实验中理想的选择。

IsoPlane-160用非常小巧的设计达到了1/3米焦长光谱仪才能达到的分辨率。 它 f/3.88的光学设计几乎完全消除了像差，也保证了高分辨率。 不仅是光谱应用，也是显微光谱仪的理想选择。

IsoPlane的常用领域包括:

* 显微光谱仪：拉曼，荧光和光致发光

* 多通道光谱仪

* 拉曼光谱

* 荧光和光致发光光谱

* 激光诱导击穿谱仪(LIBS)

* 生物医学成像

* 傅里叶频谱

IsoPlane-320 **设计，零像散设计

全波长，全部焦平面零像散，高分辨率

避免信号串扰，同时采集>100光纤输入信号

可充分利用大尺寸CCD的成像空间，芯片高度可达达22mm

其他任何反射型光谱仪难以匹配的性能

高光通量

每个像素可收集更多的光子，提升光谱分辨率和对比度

更高的信号强度提高实验的灵敏度 (C6H6 1460 cm-1 image).

三光栅塔轮，全软件控制

探测范围从UV到mid-IR，软件选择中心波长，全面的实验灵活性优于棱镜型光谱仪

优化的色散效率和分辨率，只需一键实现

光栅塔轮可快速更换，系统可支持高达9块光栅

精准的千分尺调整

可调整光谱与相机的聚焦效果

提升光谱和相机的分辨率

高效率光学镀膜

Acton#1900 增强型铝膜反射镜提供从193nm到mid-IR的非常高反射率.

保护性银膜提供平均>98%的反射率.

近红外可以选择金膜.

兼容普林斯顿仪器各类相机

PIXIS CCD cameras

ProEM EMCCD cameras

PI-MAX4 ICCDs and emICCD cameras

NIRvana InGaAs NIR/SWIR cameras

全面的附件

光纤束，滤波转轮，光源，光栅等等.

IntelliCal 波长校准和强度校准系统

点击查看其他各种附件

LightField的64-位操作平台

与LabVIEW，MATLAB，EPICS等第三方软件无缝对接.

直观易上手的用户界面设计.

内置数学引擎，实时获得图像与光谱的数据分析.

Model

Focal Length

Aperture Ratio

PMT Resolution*

CCD Resolution

IsoPlane SCT-320

320 mm

f/4.6

0.05 nm

0.08 nm

IsoPlane 160

203 mm

f/3.88

0.10 nm

0.15 nm

Tip-Enhanced Raman Spectroscopy

TERS - Tip-Enhanced Raman spectroscopy

Laser-Induced Breakdown Spectroscopy

LIBS is considered one of the most convenient and efficient analytical techniques for trace elemental analysis in gases， solids， and liquids. LIBS spectra obtained by the Mars Curiosity Rover have confirmed that our sister planet could have harbored life

Fluorescence， Phosphorescence， and Photoluminescence Spectroscopy

Fluorescence， phosphorescence and photoluminescence occur when a sample is excited by absorbing photons and then emits them with a decay time that is characteristic of the sample environment.

General Raman

The most common application of Raman spectroscopy involves the vibrational energy levels of a molecule. Incident laser light in the UV， visible or NIR， is scattered from molecular vibrational modes.

Surface-Enhanced Raman Spectroscopy

SERS - Surface-enhanced Raman spectroscopy

Coherent Anti-Stokes Raman Spectroscopy

Coherent Anti-Stokes Raman spectroscopy (CARS) a type of non-linear Raman spectroscopy. Instead of the traditional single laser， two very strong collinear lasers irradiate a sample.

Singlet Oxygen Imaging

Singlet oxygen， the first excited state of molecular oxygen， is a highly reactive species that plays an important role in a wide range of biological processes， including cell signaling， immune response， macromolecule degradation， and elimination of neoplastic tissue during photodynamic therapy.

Combustion

Combustion researchers rely on laser-based optical diagnostic techniques as essential tools in understanding and improving the combustion process.

Plasma Emission Spectroscopy

The different types of plasma emission spectroscopy can be categorized by how the plasma is generated. Spectra of nuclear fusion plasmas are used to ascertain the chemical species present and other properties.

Resonance Raman Spectroscopy

Instead of fluorescence， some types of colored molecules produce strong Raman scattering at certain conditions. This effect was called Resonance Raman.

Stimulated Raman Scattering

Stimulated Raman scattering takes place when an excess of Stokes photons that were previously generated by normal Raman scattering are present or are deliberately added to the excitation beam.
