主要材质：
黄铜镀镍，不锈钢316看了CMP防爆变径/堵头/呼吸阀系列的用户又看了
留言询价
虚拟号将在 180 秒后失效
使用微信扫码拨号

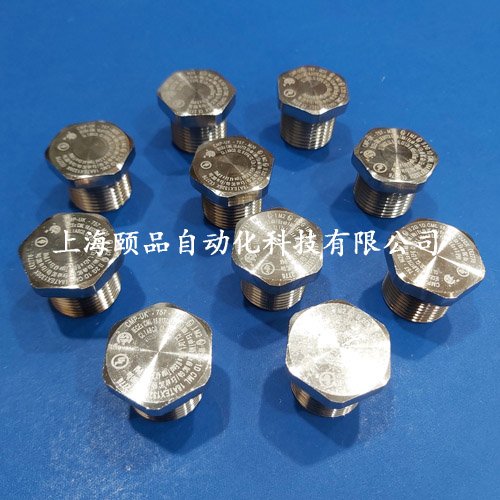

CMP 757防爆堵头CMP 757 Hexagon Head Stopper Plug
CMP 757 | Hexagon Head Stopper Plug
Available brass, nickel plated brass, aluminium & stainless steel
上海颐品自动化科技有限公司，咨询热线：13818******
Hexagon Head Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Provides means of blanking unused cable entries
• Temporary or permanent
• General purpose / industrial version available
• Equipment interface ‘O’ ring seal available
• Nylon Ex e only version available (-20?C to +60?C)
•-60?C to 200?C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL
| Ordering Reference | Thread Size | Minimum Thread Length | Across Flats "A" | Across Corners Diameter | Protrusion Length "C" |
| 757DM1 | M16 X 1.5 | 15.0 | 22.0 | 24.2 | 5.0 |
| 757DM2 | M20 X 1.5 | 15.0 | 24.0 | 26.4 | 5.0 |
| 757DM3 | M25 X 1.5 | 15.0 | 30.0 | 33.0 | 5.0 |
| 757DM4 | M32 X 1.5 | 15.0 | 36.0 | 39.6 | 5.0 |
| 757DM5 | M40 X 1.5 | 15.0 | 46.0 | 50.6 | 5.0 |
| 757DM6 | M50 X 1.5 | 15.0 | 55.0 | 60.5 | 5.0 |
| 757DM7 | M63 X 1.5 | 15.0 | 70.0 | 77.0 | 5.0 |
| 757DM8 | M75 X 1.5 | 15.0 | 80.0 | 88.0 | 5.0 |
| 757DM9 | M90 X 2.0 | 24.0 | 99.0 | 108.9 | 5.0 |
| 757DM10 | M100 x 2.0 | 24.0 | 108.0 | 118.8 | 5.0 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||
CMP 767圆形防爆堵头CMP 767 | Dome Stopper Plug
CMP 767 | Dome Stopper Plug
Available brass, nickel plated brass, aluminium & stainless steel
上海颐品自动化科技有限公司，咨询热线：13818******
Dome Head Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Provides means of blanking unused cable entries
• Temporary or permanent
• General purpose / industrial version available
• Equipment interface ‘O’ ring seal available
• Nylon Ex e only version available (-20?C to +60?C)
• -60?C to 200?C (metallic versions)
• Globally marked, IECEx, ATEX, cCSAus & UL
| Ordering Reference | Thread Size | Minimum Thread Length | Head Diameter "A" | Protrusion Length "B" | Allen Key Size A/F |
| 767DM1 | M16 X 1.5 | 15.0 | 22.0 | 5.5 | M8 |
| 767DM2 | M20 X 1.5 | 15.0 | 27.0 | 5.5 | M10 |
| 767DM3 | M25 X 1.5 | 15.0 | 30.0 | 5.5 | M10 |
| 767DM4 | M32 X 1.5 | 15.0 | 36.0 | 5.5 | M10 |
| 767DM5 | M40 X 1.5 | 15.0 | 46.0 | 5.5 | M10 |
| 767DM6 | M50 X 1.5 | 15.0 | 55.0 | 5.5 | M10 |
| 767DM7 | M63 X 1.5 | 15.0 | 68.0 | 5.5 | M10 |
| 767DM8 | M75 X 1.5 | 15.0 | 80.0 | 5.5 | M14 |
| 767DM9 | M90 X 2.0 | 24.0 | 95.0 | 5.5 | M14 |
| 767DM10 | M100 x 2.0 | 24.0 | 108.0 | 5.5 | M14 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||
CMP防爆变径接头（737系列）
EPIN原装进口CMP防爆格兰，CMP防爆变径系列，广泛应用于石油石化和海洋钻井平台，有ATEX, IECEx，UL，ABS等认证。
CMP 737防爆变径接头防爆缩减接头CMP Adaptors & Reducers
CMP 737 | Thread Conversions | Adaptors & Reducers
Available in nickel plated brass, brass, nylon, stainless steel, aluminium
上海颐品自动化科技有限公司，咨询热线：13818******
Adaptors & Reducers, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Used for thread conversion
• Wide range of thread types & sizes
• General purpose / industrial version available
• Equipment interface ‘O’ ring seal available
• -60?C to +200?C (metallic versions)
• Globally marked, IECEx, ATEX, UL & cCSAus
When selecting and installing certified electrical equipment and components in potentially Explosive Atmospheres, it is the users responsibility to ensure that the local industry codes of practice are observed and followed, for example EN 60079-14, IEC 60079-14 or NFPA 70 / NEC 500.
To determine ordering reference please select from the tables below in the following order:Product Type - Form of Protection - Option (if required) - Thread Form - Thread Size - Thread From (if applicable) - Thread Size (if applicable) - MaterialProduct TypeForm of ProtectionOptionsMale Thread FormMale Thread SizeFemale Thread FormFemale Thread SizeMaterialFrom Product PageFrom Table A BelowFrom Table B BelowFrom Table C BelowFrom Table D BelowFrom Table C BelowFrom Table D BelowFrom Table E Below737ERM2M25
CodeForm of ProtectionDGroup II Dual Certified Ex d & Ex eEGroup II Increased Safety Ex eGGeneral Purpose/IndustrialMGroup I Mining (Ex d)
CodeOptionsAType A (eg. externally secured - non tamper-proof Ex d Stopper Plug)BType B (eg. internally secured - tamper-proof Ex d Stopper Plug)ROptional equipment interface 'O' ring seal
CodeThread FormMMetricNNPSMTNPTPPGBBSPPIE.T. (Imperial)SBSPT
CodeThread SizeMetric"M"NPSM"N"NPT"T"PG"P"BSP"B"Imperial"I"BSP"S"1A---7---1161/2"1/2"91/2"5/8"1/2"2203/4"3/4"113/4"3/4"3/4"3251"1"13.51"1"1"4321 1/4"1 1/4"161 1/4"1 1/4"1 1/4"5401 1/2"1 1/2"211 1/2"1 1/2"1 1/2"6502"2"292"2"2"7632 1/2"2 1/2"362 1/2"2 1/2"2 1/2"8753"3"423"3"3"9903 1/2"3 1/2"483 1/2"3 1/2"3 1/2"101004"4"-4"4"4"
Note: Other thread sizes available on request
Nominal dimensions shown in this table may vary due to material availability. All dimensions shown are in millimetres unless otherwise stated. Within the parameters of its Explosive Atmosphere certification, CMP Products reserves the right to change the design and/or dimensions of any of the products illustrated without notice. For further information, please contact CMP Products.
EPIN原装进口CMP防爆格兰系列，广泛应用于石油石化和海洋钻井平台，有ATEX认证和ABS等认证。
EPIN原装进口CMP防爆格兰系列，广泛应用于石油石化和海洋钻井平台，有ATEX认证和ABS等认证。
EPIN-CMP-781系列防爆电缆密封接头(Exe、Exd)
CMP代理分销：上海颐品自动化科技有限公司
CMP 781防爆呼吸接头CMP 781 | Breather / Drain Plug
CMP 781 | Breather / Drain Plug
Available brass, nickel plated brass, aluminium & stainless steel
上海颐品自动化科技有限公司，咨询热线：13818******
Breather / Drain Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• 781E for Ex e use
• 781D for Ex d use
• Drains equipment susceptible to moisture collection
• Enables equipment to breathe
• General purpose / industrial version available
• Nylon Ex e only version available (-20?C to +60?C)
• -60?C to 130?C (metallic versions)
• Globally marked, IECEx, ATEX & cCSAus
| Ordering Reference (781D) | Ordering Reference (781E) | Thread Size | Minimum Thread Length | Protrusion Length ?F? | Across Flats Dimension | Across Corners Dimensions | Max Installation Torque (Nm) |
| 781DM2 | 781EM2 | M20 x 1.5 | 15.0 | 12.7 | 30.0 | 33.0 | 7.0 |
| 781DM3 | 781EM3 | M25 x 1.5 | 15.0 | 12.7 | 36.0 | 39.6 | 10.0 |
| 781DT1 | 781ET1 | ½? NPT | 19.9 | 12.7 | 30.0 | 33.0 | 7.0 |
| 781DT2 | 781ET2 | ¾? NPT | 20.2 | 12.7 | 36.0 | 39.6 | 10.0 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||||
CMP防爆变径/堵头/呼吸阀系列，CMP代理分销：上海颐品自动化科技有限公司
