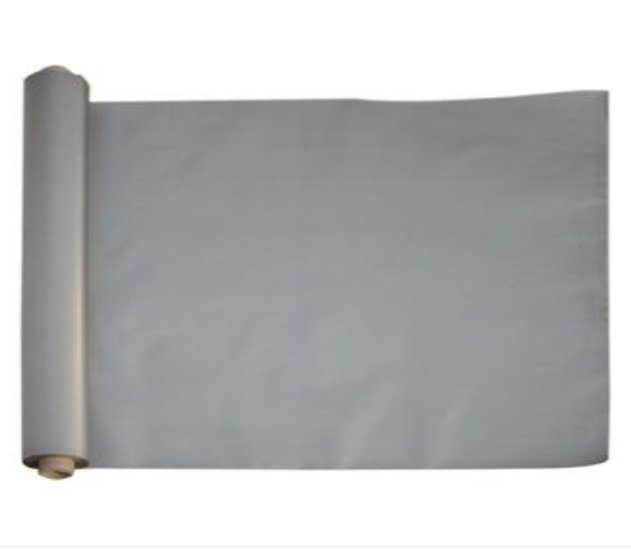

材质：不锈钢丝、镍丝、黄铜丝
编织：金属丝编织密纹网中纬丝聚密排列，有平纹编织密纹网、斜纹编织密纹网、竹花编织密纹网、反差编织密纹网。
性能：采用上等品质不锈钢丝编织而成。是经向、纬向丝径和密度有较大反差，因而网子厚度和过滤精度及使用寿命比方孔网有较明显的提高，它的过滤精度是方孔网布无法实现的。

用途：主要用于气体、液体过滤和其它介质分离，应用于航天、石油、化工等行业。

Weaving : While the warp wires remain straight , the weft wires are plain woven as close as possible against each other which forming a dense strong material with twisting passageways . Plain weave dense wire mesh , twill weave dense wire mesh , bamboo weaving dense wire mesh and contrast woven dense wire mesh .
Characteristic : Adopting high quality stainless steel wire woven .The main character is similar to Plain Dutch Wire Mesh , except that the weave method is twilled, allowing a double layers of weft wires . Its filtration accuracy can not be achieved by a square hole mesh .
Main applications : Widely used for gas , liquid filter and other medium separation. Applied in aerospace ,petroleum and chemical industry ,etc .

型号	规格	名义孔径尺寸µm	有效截面率%	网重Kg/m2	网厚mm	对应旧标准网号
MXW3	500×3500/0.025×0.015	3	4.9	0.30	0.055	1970
MXW4	400×2700/0.028×0.02	4	4.7	0.36	0.068	1570
MXW4	363×2300/0.032×0.022		4.5	0.40	0.076	1430
MXW4	325×2100/0.036×0.025		4.2	0.46		1280
MXW4	325×2300/0.036×0.025				0.086	1280
MXW5	317×2100/0.036×0.025	5	4.7			1250
MXW6	300×2100/0.036×0.025	6	6.0	0.45		1180
MXW7	285×2100/0.036×0.025	7	7.2	0.44		1125
MXW8	250×1600/0.05×0.032	8	3.8	0.63	0.114	1000
MXW8	250×1900/0.04×0.028	8	7.8	0.51	0.096	1000
MXW9	203×1500/0.056×0.036	9	6.2	0.67	0.128	795
MXW10	216×1800/0.045×0.03	10	9.4	0.53	0.105	850
MXW10	203×1600/0.05×0.032	10	9.3	0.58	0.114	795
MXW11	174×1400/0.063×0.04	11	7.4	0.74	0.143	685Ⅰ
MXW13	165×1400/0.063×0.04	13	8.8	0.73	0.143	650Ⅰ
MXW13	174×1700/0.063×0.032	13	12.9	0.62	0.127	685Ⅱ
MXW14	165×1500/0.063×0.036	14	11.4	0.67	0.135	650Ⅱ
MXW15	160×1500/0.063×0.036	15	12.4	0.67	0.135	630
MXW15	150×1400/0.063×0.04	15	11.4	0.71	0.143	600
MXW17	130×1100/0.07×0.045	17	9.4	0.87	0.171	510
MXW18	130×1200/0.071×0.045	18	12.0	0.80	0.161	510
MXW20	100×760/0.10×0.071	20	7.4	1.25	0.242	400Ⅱ
MXW21	130×1600/0.063×0.036	21	18.6	0.64	0.135	510
MXW22	100×850/0.10×0.063	22	10.0	1.14	0.226	400Ⅰ
MXW24	90.7×760/0.10×0.071	24	9.6	1.23	0.242	360Ⅰ
MXW26	90.7×850/0.10×0.063	26	12.7	1.12	0.226	360Ⅱ
MXW28	80×700/0.112×0.08	28	9.8	1.38	0.272	320
MXW29	78×700/0.112×0.08	29	10.3	1.37	0.272	300Ⅰ
MXW31	78×760/0.112×0.071	31	13.5	1.25	0.254	300Ⅱ
MXW31	70×600/0.14×0.09	31	10.1	1.61	0.32	280
MXW36	65×600/0.14×0.09	36	12.0	1.59	0.32	256
MXW47	50×500/0.14×0.112	47	12.0	1.83	0.364	200
MXW51	50×600/0.125×0.09	51	17.2	1.47	0.305	200
MXW63	40×430/0.18×0.125	63	15.4	2.09	0.43	160
MXW70	40×560/0.18×0.10	70	23.5	1.73	0.38	160
MXW77	30×250/0.28×0.20	77	11.2	3.41	0.68	120
MXW89	30×340/0.28×0.16	89	17.9	2.84	0.60	120
MXW101	20×150/0.45×0.355	101	7.5	6.02	1.16	80
MXW110	24×300/0.28×0.18	110	19.6	3.01	0.64	95
MPW118	20×200/0.355×0.28	118	12.1	4.58	0.915	80
MPW119	20×260/0.25×0.20	119	17.6	3.14	0.65	80
