Environmental Conditions

Use in interior spaces Altitudes of up to 3000 m above sea level

Max. relative humidity 80% up to 31 °C;

decreasing linearly to 50% relative humidity at 40 °C

Environmental Conditions

during Storage and Shipping

Temperature: -10 °C to +50 °C

Humidity: 15% to 85%

Permissible Ambient

Temperature during Operation

+2 °C to +35 °C

Heat Dissipation

100 V， 50 / 60 Hz 120 V， 60 Hz 230 V， 50 / 60 H

0.35 kWh/h; 1170 Btu/h 0.35 kWh/h; 1170 0.35 kWh/h; 1170

1140 kJ/h Btu/h; 1140 kJ/h Btu/h; 1140 kJ/h

Overvoltage Category

II

Pollution Degree

2

IP

20

Running Time

99 h 59 min 50 sec， hold

Maximum Speed nmax

17850 rpm

Minimum Speed nmin

300 rpm

Maximum RCF Value at nmax

30279 x g

Noise Level at Maximum Speed

< 56 dB

Maximum Kinetic Energy

10.1 kJ

Temperature Setting Range

-10 °C to +40 °C

Height (open door / closed door)

700 mm / 320 mm

Width

460 mm

Depth

670 mm

Weight

74 kg

Unit

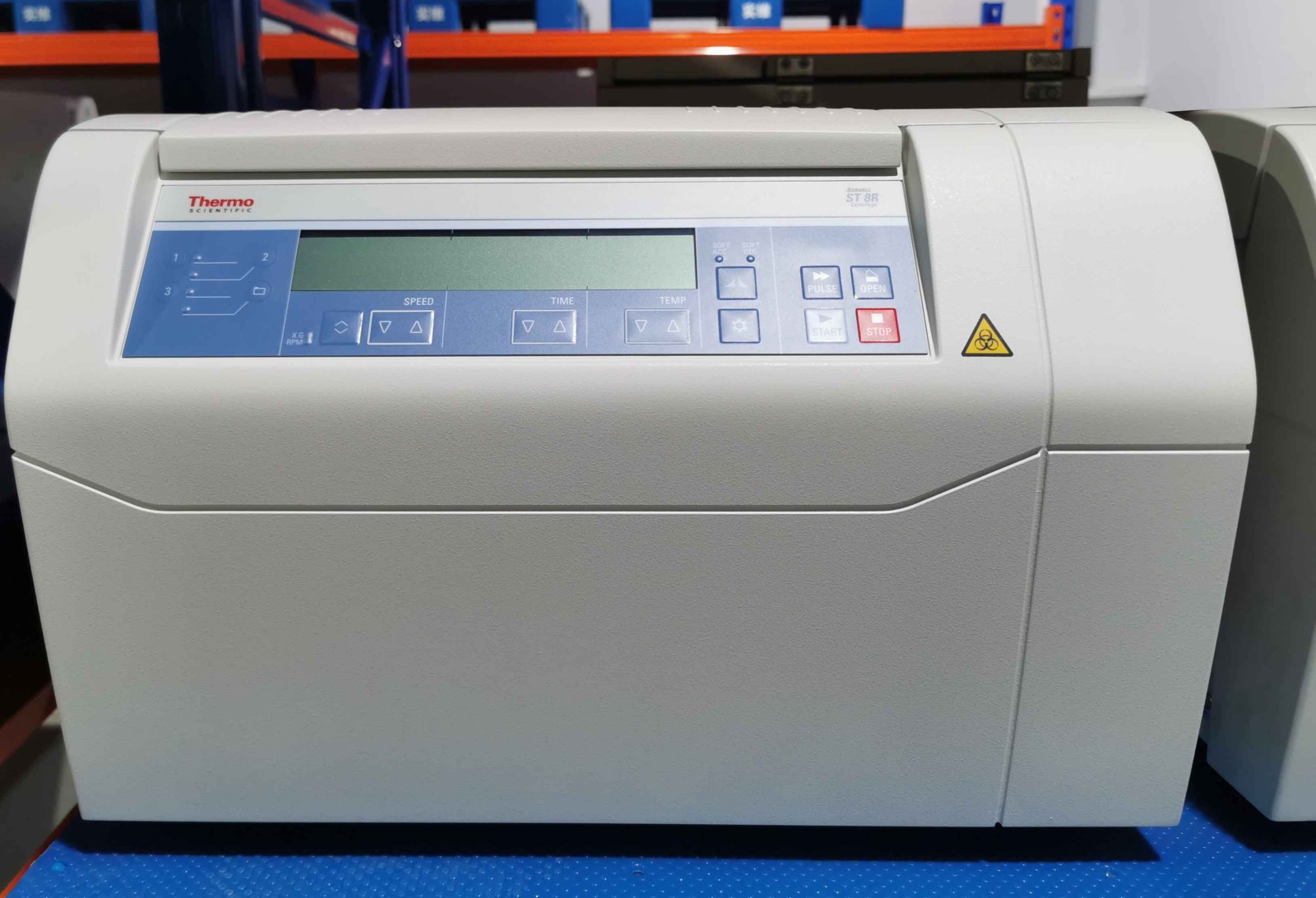

Sorvall ST 8R

Article No.

75007205 75007203 75007204

Mains Voltage

100 V 120 V 230 V

Frequency

50 / 60 Hz 60 Hz 50 / 60 Hz

Rated Current

10 A 8 A 4 A

Power Consumption

850 W 700 W 750 W

Equipment Fuse

15 AT 15 AT 15 AT

Building Fuse

15 AT 15 AT 16 AT

Part No.

Thermo Scientific Rotors

75005701

TX-150 swinging bucket rotor

75005702

TX-150 round buckets

75005703

TX-150 50mL conical buckets

75005704

TX100S clinical swinging bucket rotor with sealed carriers

75005705

TX100 clinical swinging bucket rotor with carriers

75005706

M10 microplate swinging bucket rotor

75005723

M10 buckets

75005721

M10 sealed buckets

75005600

MT12 microtube swinging bucket rotor

75005709

HIGHConic III fixed angle rotor

75003623

CLINIConic fixed angle rotor

75005715

MicroClick 24x2 microtube rotor

75005719

MicroClick 30x2 microtube rotor

75005720

8x8 PCR Strip rotor

75005733

Hematocrit rotor

75003694

8 x 50 mL Individually Sealed rotor

75005765

MicroClick 18x5 microtube rotor
