应用概述：

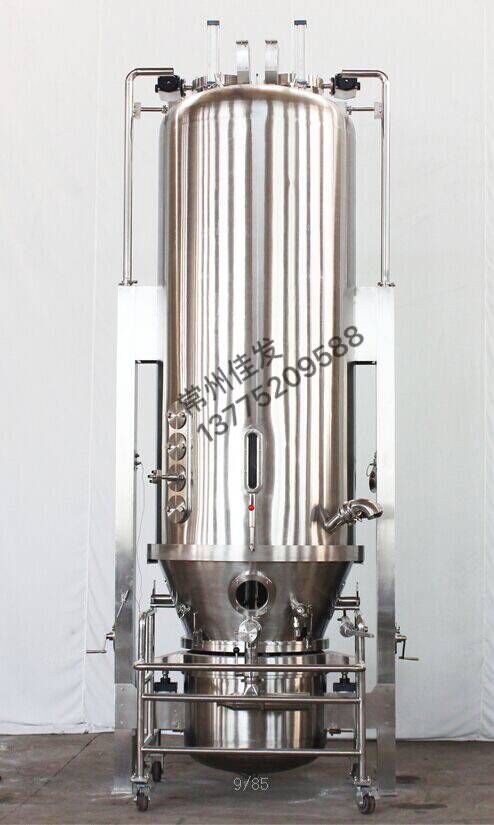

★沸腾制粒机主要用于：医药、食品、化工等行业的粉末物料混合、制粒、干燥、颗粒“顶喷”包衣等作业。如片剂颗粒、速溶饮料、调味品用颗粒。
★本机按 JB20014-2004 《药用沸腾制粒器》标准进行设计和制作。
★The machine is mainly used for the operations of
mixing, granulating, drying and coating of granule “Top Spraying”, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
★The machine is designed and manufactured in accordance
with JB20014-2004 《 Fluid-bed Granulator In Medicine 》
设备特点：
★混合-制粒-干燥-步法达到工艺要求。
★双捕集滤袋系统，清灰彻底。
★多流体雾化器，确保成粒均匀，粉末含量极低。
★可选配2巴的防爆设计。
★按GMP规范设计、制造及工程配置布局。
★Mixing-granulating-drying in one-step.
★Adopting double chamber filtering bags system, removing dust
completely.
★Adopting multi-fluid nozzle, it guarantees that the formed granule
is uniform and the content of powder is very low.
★Can choose 2 bar explosion-proof desi
技术参数：
规格 Specification 项目 ltem | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | 800-1000 | ||
原料容器容积 Container Volume | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | 1000 | 1500 |
按用户要求设计 By client | |
生产能力Capacity | Kg/ 批 kg/batch | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | ||
蒸汽 Steam | 压强 Pressure | Mpa | 0.4-0.6 | ||||||||||||
耗量 Consumption | Kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | 310 | 400 | ||
风机功率 Power of fan | kw | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | 30 | 45 | ||
电加热功率 Power of electrical heater | kw | 6 | 9 | ||||||||||||
噪音Noise | dB | 风机隔离处理噪音低于75分贝No more than 75dB Separated of fan | |||||||||||||
压缩空气Compressed air | 压强 Pressure | Mpa | 0.6 | ||||||||||||
耗量 Consumption | m3/min | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | ||
主机尺寸Installation size for reference | H1(mm) | 2600 | 2600 | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 3050 | 3300 | <td style="BORDER-BOTTOM: rgb(35,25,22) 1px solid; BORDER-LEFT: #f0f0f0; PADDING-BOTTOM: 0px; BACKGROUND-COLOR: transpar
||||
