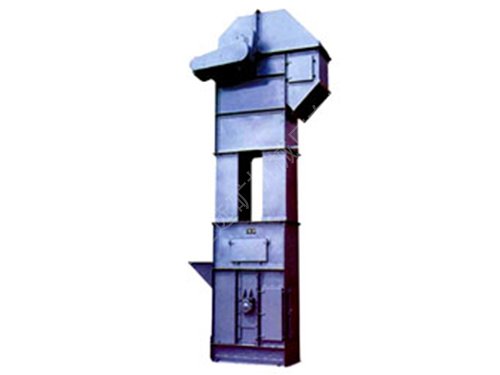

　　TD型斗式提升机采用橡胶带牵引构件,具有规格多、输送量大、提升高度高、运行平稳、寿命长等优点。被输送物料温度一般不得大于60℃,如果采用耐热胶带，则被输送物料的温度可达150℃，适宜输送无（或小）磨琢性的散状物料，不适于输送大块的、高磨琢性及掏取阻力大的物料。
　　TD型斗提机备有四种料斗：Q型（浅斗）、H型（弧底斗）、Zd型（中深斗）、Sd型（深斗）
　　TD-bucket conveyer with the use of rubber traction components, it has many specifications, huge conveying capacity, high degree of upgrading, stable, long-life and other advantages. Delivered materials temperature in general does not exceed 60 ℃.If using heat-resistant tape, the temperature of delivered materials can reach up to 150 ℃.It is suitable for delivery no(or small) grinding bulk materials ,but unsuitable for transporting large, High-grinding materials and materials having a big resistance of drawing out.
　　TD- bucket conveyer equipped with four hopper: Q-(shallow bucket), H-(arc at the end of bucket), Zd-(medium deep bucket), Sd-(deep bucket)
　　主要型号及技术参数:
　　MAIN MODELS AND TECHNICAL PARAMETERS:

提升机型号 Conveyer type			TD100		TD160				TD250				TD315				TD400				TD500				TD630
料斗型式Chute type			Q	H	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd	Q	H	Zd	Sd	H	Zd	Sd
输送量Conveying capacity		m3/h	4	7.6	9	16	16	27	20	36	38	59	28	50	42	67	40	76	68	110	63	116	96	154	142	148	238
料斗Chute	斗容Volume	L	0.15	0.3	0.49	0.9	1.12	1.9	1.22	2.24	3.0	4.6	1.95	3.55	3.75	5.8	3.1	5.6	5.9	9.4	4.84	9.0	9.3	14.9	14	14.6	23.5
	斗距Buckets pitch	mm	200		280		350		360		450		400		500		480		560		500		625		710
传动滚筒直径Geared drum diameter		mm	400						500								630								800
从动滚筒直径Return drum diameter		mm	315						400								500								630
料斗运行速度Running speed of chute		mm/s	1.4						1.6								1.8								2.0
传动滚筒转速Geared drum rev		r/min	67						61								55								48

　　TH型斗式提升机采用环形链作牵引构件,具有规格多、输送量大、提升高度高、运行平稳、寿命长等优点。被输送物料温度一般不超过250℃，适宜输送松散密度ρ＜1.5t/m3的粉状、粒状、小块状的无磨琢、半磨琢性物料。
　　TH-bucket elevator with the use of rubber components of traction, with specifications, throughput, a high degree of upgrading, stable, long-life advantages.Temperature materials were delivered less than 250 ℃, suitable for transmission loose density ρ <1.5t/m3 the powdered, granular, massive Non-small mill cut, cut a half-mill material.
　　主要型号及技术参数:
　　MAIN MODELS AND TECHNICAL PARAMETERS:

斗式提升机型号Bucket conveyer type		TH315		TH400		TH500		TH630
料斗型式Chute type		Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh
输送量(m3/h) Conveying capacity		35	59	58	94	73	118	114	185
料斗Chute	斗容Volume (L) 	3.75	6	5.9	9.5	9.3	15	14.6	23.6
	斗距Buckets pitch (mm)	512				688
链条Chain	圆钢直径节距Rounds diameter pitch (mm)	Φ18×64				Φ22×86
	单条破断强度Tensile strength of one chain (KN)	≥320				≥480
单位长度牵引件重量Unit weight of pull part (kg/m)		25.64	26.58	31.0	31.9
料斗运行速度Running speed of chute (m/s)		1.4				1.5
传动链轮转速Drive sprocket wheel vet (r/min)		42.5		37.6		35.8		31.8
输送物料**块度Maximum lump size ot handling materials (mm)		35		40		50		60
