产品简介:

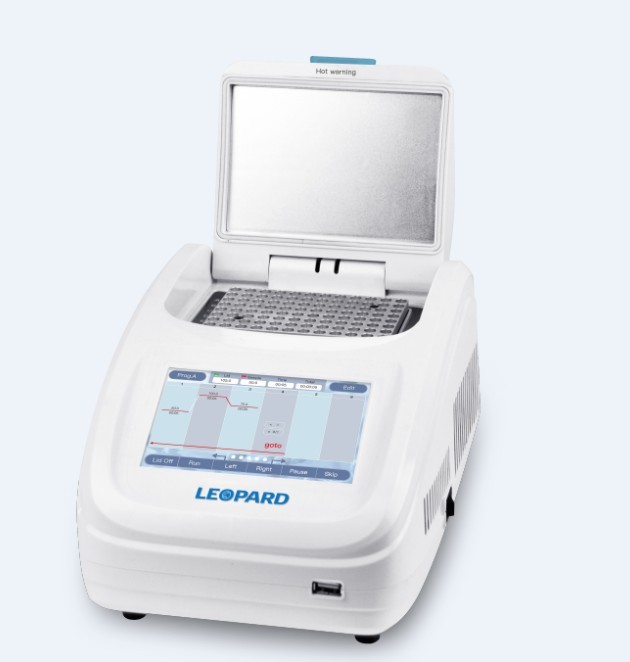

GT-R100/GTL-R100热盖金属浴可广泛应用于PCR、LAMP、NASBA、RPA、样品的保存和反应、DNA扩增和电泳的预变性、血清凝固、核酸和蛋白质的变性处理等。
The GT-R100/GTL-R100 Dry Bath Incubator with Heated Lid can be widely used in LAMP, NASBA, RPA, sample preservation and reaction and electrophoresis pre-denaturation, serum coagulation, nucleic acid and protein denaturation treatment.
产品特点:
1、外观新颖独特,界面操作简单方便,体积小巧。 2、采用5寸TFT高清全触摸彩屏,可快速编辑所需文件,温度曲线直观显示,设置方便快捷,实时精确显示温度曲线和仪器运行过程状态。 3、制冷型具有基于半导体加热制冷技术,以及PID控温技术设计,升降温速率**。 4、巧妙的弹性热盖结构设计,自适应不同高度的试管,保证实验一致性,达到实验**条件。 5、热盖温度具有独立设置模式、模块温度加设定值两种模式。 6、内置10组程序,每组程序可增加、删除温度步或循环步。 7、多种类型模块可以随意选配,安装拆卸方便。 8、金属浴可运行PCR反应程序。
1. Novel and unique appearance, simple interface operation, small size.
2. Using 5-inch TFT high-definition full-touch color screen, can quickly edit the required documents, temperature curve visual display, the setting is convenient and fast, real-time accurate display temperature curve and instrument operation process status.
3. Refrigeration type is based on semiconductor heating and cooling technology, and PID temperature control technology design,the rate of heating and cooling is excellent.
4. Ingenious elastic hot cover structure design, adaptive to different heights of the test tube, to ensure the consistency of the experiment, to achieve the best conditions of the experiment.
5. The hot cover temperature setting has two modes: independent setting mode, block temperature plus setting value.
6. Built-in 10 groups of programs, each group of programs can add or delete temperature steps or cycle steps.
7. Various types of blocks can be selected at need, easy to install and disassemble.
GTL-R100(制冷型) | GT-R100(加热型) | |
模块温度设置范围 | - 10℃~100℃ | 0℃~100℃ |
模块温度控制范围 | (室温-25℃)~100℃ | (室温+5℃)~100℃ |
热盖温度设置范围(≤105℃) | 0~105℃ / 模块+(0~105℃) | 0~105℃ / 模块+(0~105℃) |
热盖温度控制范围 | 室温+5℃~105℃ | 室温+5℃~105℃ |
定时范围 | 1s ~99m59S / 0为∞ | 1s ~99m59S / 0为∞ |
**步数 | 10 | 10 |
**循环次数 | 99 | 99 |
模块控温精度 | ±0.5℃ | ±0.5℃ |
热盖温度精度 | ±1.0℃ | ±1.0℃ |
模块温度均匀性 | ±0.5℃ | ± 0.5℃ |
显示精度 | 0.1℃ | 0.1℃ |
加热时间(室温25℃) | 升温速率(37℃-100℃)≥7℃/min | 升温速率(37℃-100℃)≥7℃/min |
冷却时间 | 降温速率(100℃-37℃)≥8℃/min | 风扇降温 |
尺寸 | W.185xD.280xH.160mm | W.185xD.280xH.160mm |
净重 | 3.2Kgs | 2.7Kgs |
Model | GTL-R100(Cooling) | GT-R100(Hesting) |
Block temp. setting range | - 10℃~100℃ | 0℃~100℃ |
Block temp. control range | (R.T.-25℃)~100℃ | (R.T.+5℃)~100℃ |
Hot lid temp. setting range(≤105℃) | 0~105℃ / Block+(0~105℃) | 0~105℃ / Block+(0~105℃) |
Hot lid temp. control range | R.T.+5℃~105℃ | R.T.+5℃~105℃ |
Time range | 1s ~99m59S / 0为∞ | 1s ~99m59S / 0为∞ |
Max. number of steps | 10 | 10 |
Max. number of cycles | 99 | 99 |
Block temp. control accuracy | ±0.5℃ | ±0.5℃ |
Hot lid temp. accuracy | ±1.0℃ | ±1.0℃ |
Block temp. uniformity | ±0.5℃ | ± 0.5℃ |
Display accuracy | 0.1℃ | 0.1℃ |
Heating time (R.T.25℃) | Heating rate(37℃-100℃)≥7℃/min | Heating rate(37℃-100℃)≥7℃/min |
Cooling time | Cooling rate(100℃-37℃)≥8℃/min | Fan cooling |
Dimension | W.185xD.280xH.160mm | W.185xD.280xH.160mm |
Net weight | 3.2Kgs | 2.7Kgs |
型号 | 规格 | 孔直径 | 孔底形状 | 模块尺寸 |
A | 0.2ml×96 | 6.7mm | 锥底 | 107×71×38mm |
B | 0.5ml×54 | 8mm | 锥底 | 107×71×35mm |
C | 1.5ml×35 | 10.8mm | 锥底 | 107×71×27mm |
D | 2.0ml×35 | 10.8mm | 圆底 | 107×71×27mm |
Cat# | Spec | Dia. of hole | Hole bottom shape | Block dimension |
A | 0.2ml×96 | 6.7mm | 锥底 | 107×71×38mm |
B | 0.5ml×54 | 8mm | 锥底 | 107×71×35mm |
C | 1.5ml×35 | 10.8mm | 锥底 | 107×71×27mm |
D | 2.0ml×35 | 10.8mm | 圆底 | 107×71×27mm |
