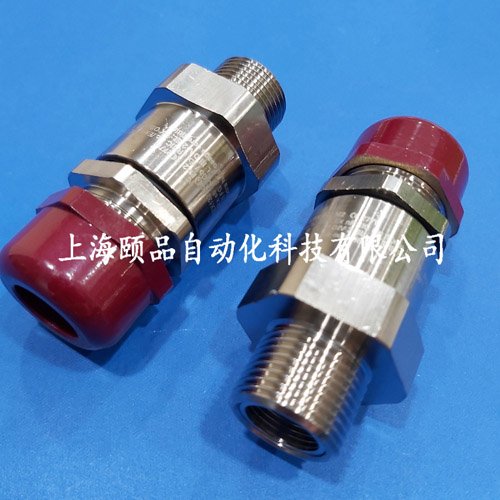

CMP带胶泥密封防爆格兰（PXSS2K系列）

CMP防爆格兰代理商：上海颐品自动化科技有限公司

关键词：CMP防爆格兰，CMP防爆葛兰，CMP防爆填料函，CMP防爆密封接头

CMP非铠防爆格兰，CMP铠装防爆格兰，CMP防爆变径，CMP防爆呼吸阀堵头

CMP带胶泥密封防爆格兰（PXSS2K-M20系列）

CMP防爆格兰代理商: 上海颐品自动化科技有限公司

PXSS2K | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland

For all types of Unarmoured & Braid Armour Cables

Double Seal, Globally Approved, Explosive Atmosphere Barrier Cable Gland

• Direct & remote installation
• Superior levels of cable retention
• Displacement type environmental seal
• Compound barrier type flameproof seal
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +85°C
• Class I Zone 1, 21 and Zone 2, 22
• Globally marked, IECEx, ATEX, UL & cCSAus
• once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

CERTIFICATES

PRODUCT SELECTION TABLE

CMP防爆格兰代理商: 上海颐品自动化科技有限公司

Cable Gland Size	Available Entry Threads 'C' (Alternate Metric Thread Lengths Available)					Number of Cores	Diameter Over Conductors 'A'	Cable Bedding Diameter 'G'	Overall Cable Diameter 'B'		Across Flats 'D'	Across Corners 'D'	Protrusion Length 'F'	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option			Cable Bedding Diameter 'G'	Overall Cable Diameter 'B'		Across Flats 'D'	Across Corners 'D'		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) 'E'	NPT	Thread Length (NPT) 'E'	NPT			Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	15.0	½'	19.9	¾"	21	8.6	8.6	3.1	8.6	30.0	33.0	53.1	20S16	PXSS2K	1RA	PVC06	0.20
20S	M20	15.0	½'	19.9	¾"	21	11.7	11.7	6.1	11.7	30.0	33.0	53.1	20S	PXSS2K	1RA	PVC06	0.20
20	M20	15.0	½'	19.9	¾"	21	12.6	12.9	6.5	14.0	30.0	33.0	54.2	20	PXSS2K	1RA	PVC06	0.20
20L	M20	15.0	½'	19.9	¾"	21	12.6	12.9	10.0	15.9	30.0	33.0	54.2	20L	PXSS2K	1RA	PVC06	0.20
25	M25	15.0	¾'	20.2	1"	30	17.5	17.9	11.1	20.0	36.0	39.6	60.0	25	PXSS2K	1RA	PVC09	0.33
32	M32	15.0	1'	25.0	1 ¼"	38	23.6	23.9	17.0	26.3	41.0	45.1	61.1	32	PXSS2K	1RA	PVC10	0.39
32L	M32	15.0	1'	25.0	1 ¼"	38	23.6	23.9	20.0	27.4	41.0	45.1	61.1	32L	PXSS2K	1RA	PVC10	0.59
40	M40	15.0	1 ¼'	25.6	1 ½"	59	30.0	30.3	22.0	32.1	50.0	55.0	62.4	40	PXSS2K	1RA	PVC13	0.56
50S	M50	15.0	1 ½'	26.1	2"	89	36.6	36.9	29.5	38.2	55.0	60.5	65.2	50S	PXSS2K	1RA	PVC15	0.66
50	M50	15.0	2'	26.9	2 ½"	115	41.0	41.3	35.6	44.0	60.0	66.0	67.6	50	PXSS2K	1RA	PVC18	0.73
63S	M63	15.0	2'	26.9	2 ½"	115	47.9	48.4	40.1	49.9	70.1	77.1	71.1	63S	PXSS2K	1RA	PVC21	1.07
63	M63	15.0	2 ½'	39.9	3"	115	53.7	54.0	47.2	55.9	75.0	82.5	70.4	63	PXSS2K	1RA	PVC23	1.06
75S	M75	15.0	2 ½'	39.9	3"	140	59.9	60.2	52.8	61.9	80.0	88.0	75.3	75S	PXSS2K	1RA	PVC25	1.30
75	M75	15.0	3'	41.5	3 ½"	140	64.3	64.2	59.1	67.9	85.0	93.5	74.9	75	PXSS2K	1RA	PVC27	1.30
90	M90	24.0	3 ½'	42.8	4"	140	75.3	75.6	66.6	79.4	108.0	118.8	94.8	90	PXSS2K	1RA	PVC31	3.02
100	M100	24.0	3 ½'	42.8	4"	200	85.6	85.9	76.0	90.9	123.0	135.3	86.3	100	PXSS2K	1RA	LSF33	4.00
Dimensions displayed in millimeters unless otherwise stated
