Two， product features

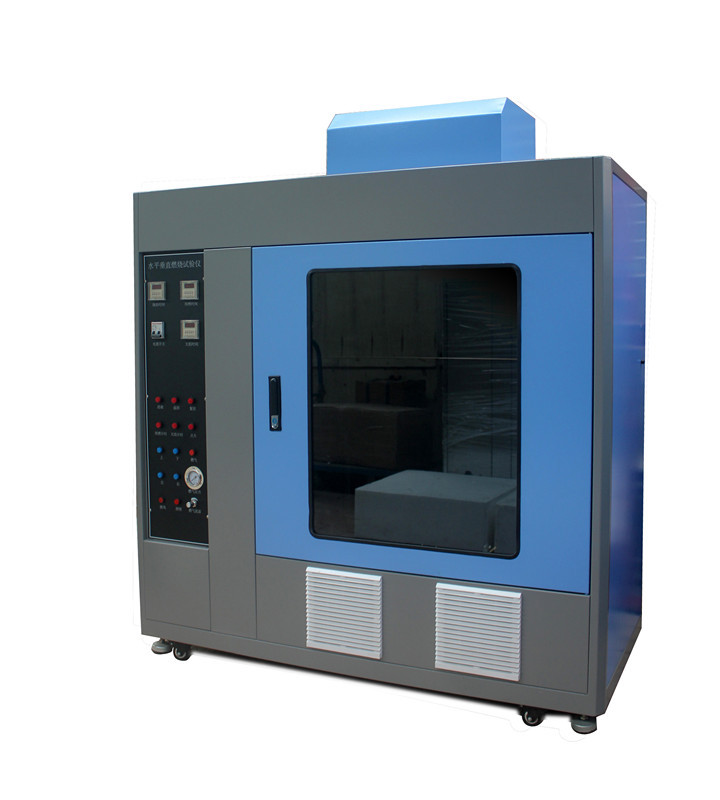

DJC-1单根电线电缆垂直燃烧试验机是采用规定尺寸的本生灯 (Bunsen burner) 和特定燃气源 ( 丙烷 ) ，按一定的火焰高度和一定的施焰角度对呈垂直状态的试品定时施燃，以试品点燃、燃烧的持续时间和燃烧长度等来评定其可燃性及着火危险性。
The vertical burning test of DJC-1 single wire and cable is set by size Bunsen (Bunsen burner) and the specific gas source (Bing Wan)， according to a certain flame height and some application of flame angle on the vertical state of the sample application to test ignition timing， ignition， combustion duration and combustion length evaluation the flammability and fire hazard.
Three， the main technical parameters
1.燃烧器：内径Φ12mm ± 0.5mm（符合GB/T18380.11）及内径Φ9.5mm ± 0.5mm（符合GB/T18380.21）本生灯各一个
1 burner: the inner diameter is Phi 12mm + 0.5mm (GB/T18380.11) and the inner diameter is 9.5mm + 0.5mm (GB/T18380.21) by a Bunsen burner
2.试验倾角： 45°
2 test angle: 45
3.火焰高度：20mm ± 2mm 到190mm±1mm可调
3 flame height: 20mm + 2mm to 190mm + 1mm adjustable
4.施焰时间: 0-999.9s±0.1s可调
4 Shi Yan time: 0-999.9s + 0.1s adjustable
5.持焰时间: 0-999.9s±0.1s，自动记录，手动暂停
5 flame holding time: 0-999.9s + 0.1s， automatic recording， manual pause
6.燃烧气体: 95% 丙烷气( 一般情况可采用液化石油气代替 )
6 combustion gas: 95% propane gas (usually liquefied petroleum gas can be used instead)
7.流量压力：带双流量表及压力表（燃气及空气）
7 flow pressure: with dual flow meter and pressure gauge (gas and air)
8.温度测试范围：0~1000℃
8 temperature measurement range: 0~1000
9.火焰温度要求：从100℃±5℃升到700℃±3℃的时间在45秒±5秒之内
9 flame temperature requirements: from 100 to 5 degrees Celsius to 700 degrees Celsius 3 degrees Celsius in 45 seconds within 5 seconds
10.火焰应连续燃烧试样，火焰燃烧时间T设定范围0.1-999.9（秒）连续设定；
10 flame should be continuous combustion samples， flame burning time T set range 0.1-999.9 (seconds) continuous set;
11.测温热电偶：Φ0.5mm进口铠装热电偶（K型）
11 thermocouple: 0.5mm diameter imported armored thermocouple (type K)
12.试验过程：试验程序自动控制，无独立抽风
12 test: test program automatic control， without independent exhaust
13.燃气：采用高纯度丙烷气或石油液化气（用户自备）；
13 gas: the use of high purity propane gas or liquefied petroleum gas (user owned);
14.被试验电线电缆长度：600±25mm；
14 tested wire and cable length: 600 + 25mm;
15.被试验电线电缆外径：导体直径大于0.8mm或截面积大于0.5mm2
15 the diameter of the test wire and cable: conductor diameter greater than 0.8mm or cross-sectional area greater than 0.5mm2
16.本装置应安放在不通风且温度为（23±10）℃的环境中进行试
16 the device should be placed in the environment without wind and temperature (23 + 10).
17.转换开关可根据实际需要选用手动或自动；
17 switch can be selected according to the actual needs of manual or automatic;
18.燃气流量范围：0.1-1L/min；
18 gas flow range: 0.1-1L/min;
19.空气流量范围：0.1-1m3/h
19 air flow range: 0.1-1m3/h
20.燃烧喷灯标准功率：1KW;
20 standard combustion burner power: 1KW;
21.电源电压：220V/50Hz
21 power supply voltage: 220V/50Hz
22.箱体材料：钢板静电喷涂/或不锈钢机箱 外表无焊点工艺
22 case material: steel plate electrostatic spray / or stainless steel case appearance without solder joint process
23.工作室尺寸：300x450x1200mm（0.16立方）
23 studio size: 300x450x1200mm (0.16 cubic meters)
First， the scope of use
DJC-1单根电线电缆垂直燃烧试验仪主要针对导体直径大于8mm(截面积大于0.5mm2)或小于8mm(截面积小于0.5mm2)的单根电线电缆的可燃性能 进行评定。适用于照明设备、低压电器、家用电器、机床电器、电机、电动工具、电子仪器、电工仪表、电气连接件和辅件等电工电子产品及其组件部件的研究、生 产和质检部门。
DJC-1 vertical burning tester for single wire and cable conductor diameter greater than 8mm (cross-sectional area greater than 0.5mm2 or less than 8mm) (cross-sectional area less than 0.5mm2) Combustible Properties of single cable were evaluated. Suitable for lighting equipment， low-voltage electrical appliances， household appliances， electrical tools， electric motor， electric tools， electronic instruments， electrical instruments， electrical connectors and accessories such as electrical and electronic products and components of the research， production and quality inspection department.
Four， with the cargo list
1 说明书 份 1
1 manual copy 1
2 燃烧箱 台 1
2 combustion chamber 1
3 接物盘 件 1
3 receiving disc 1
4 保修卡 份 1
4 warranty card copy 1
5 合格证 份 1
5 qualified certificate 1
6 不锈钢块规 个 1
A 1 gauge stainless steel 6
Five， design standards
GB/T18380.11-2008、GB/T18380.12-2008、GB /T18380.21-2008、GB/T18380.22-
GB/T18380.11-2008， GB/T18380.12-2008， /T18380.21-2008 GB， GB/T18380.22-
2008、GB/T5169.14-2007
2008， GB/T5169.14-2007
Six， applicable standards
IEC60332 、 GB/T19666-2005、 GB12972 、 GB13033 、 MT818、MT386、ISO5656
IEC60332， GB/T19666-2005， GB12972， GB13033， MT818， MT386， ISO5656
