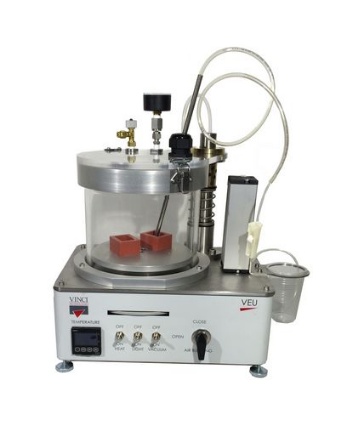

真空包埋装置（VEU）

真空包埋装置适用于多孔，松散易碎，无法制片的样品，通过优越的粘结材料，将岩屑和沙粒固化，其具有填充孔隙，裂缝和防止断裂的作用。此设备*多可以一次性处理 10 个样本，它具有静音电动真空泵，压力表和真空调节阀，可产生并持续保持真空状态。将样品放入标准模具中，可连续地在树脂喷嘴的下，用分配器填充样品。这个组件包含用于盛放树脂的一次性塑料杯，引导树脂的一次性塑料管，橡胶塞用于确保有效的密封，和一个球阀，用于分配调节管内操作或者容器内操作。照明灯有助于从树脂中提取气泡。玻璃工作室防止树脂粘附，便于维护和清洁。

产品规格：

净重：20公斤

外形尺寸：440x300x450毫米

工作室尺寸：?200x150厘米（高度）

转盘直径：200毫米

同时处理样品做多：10个

电源 220VAC，50/60Hz

产品优点：

简单的操作和轻松的清洁

真空泵与设备一体

理想用于松软，多孔和易碎的标本

同时处理10个样本

Vacuum embedding unit (VEU)

The vacuum embedding unit has been developed for impregnating porous and fragile specimens with an adequate bonding material that fills pores， cracks and prevents fracture. Up to 10 specimens can be processed sequentially without disrupting the vacuum. The former are placed on a rotating plate in individual moulds inside the vacuum chamber. A silent electrical vacuum pump， a pressure gauge and a vacuum regulating valve generate and maintain the vacuum. Once the latter condition established， the moulds are successively brought under the resin’s feeding nozzle and filled using a resin dispenser. This component consists of a disposable plastic cup which contains the resin， a disposable plastic tube that channels the resin， a rubber stopper ensuring effective sealing and a ball joint allowing the tube to be manipulated and orientated inside the chamber. A lamp helps to monitor the extraction of bubbles from the resin. The glass chamber prevents strong resin adhesion， therefore facilitating maintenance and cleaning.

FEATURES:Turntable plate diameter: 200 mm

Max standard moulds: 10

Weight: 20 kg

Overall dimensions: 440x300x450 mm

Chamber dimensions: 200 ? x 150 mm (Height)

Power supply: 220 VAC， 50/60 HzBENEFITS:

* Simple operation and effortless cleaning

* Ideal for soft， porous and friable specimens

* Up to ten specimens can be impregnated together

* Compact， benchtop unit with integral vacuum pump

* Specimen impregnation is performed isothermally (up to 80°C)
