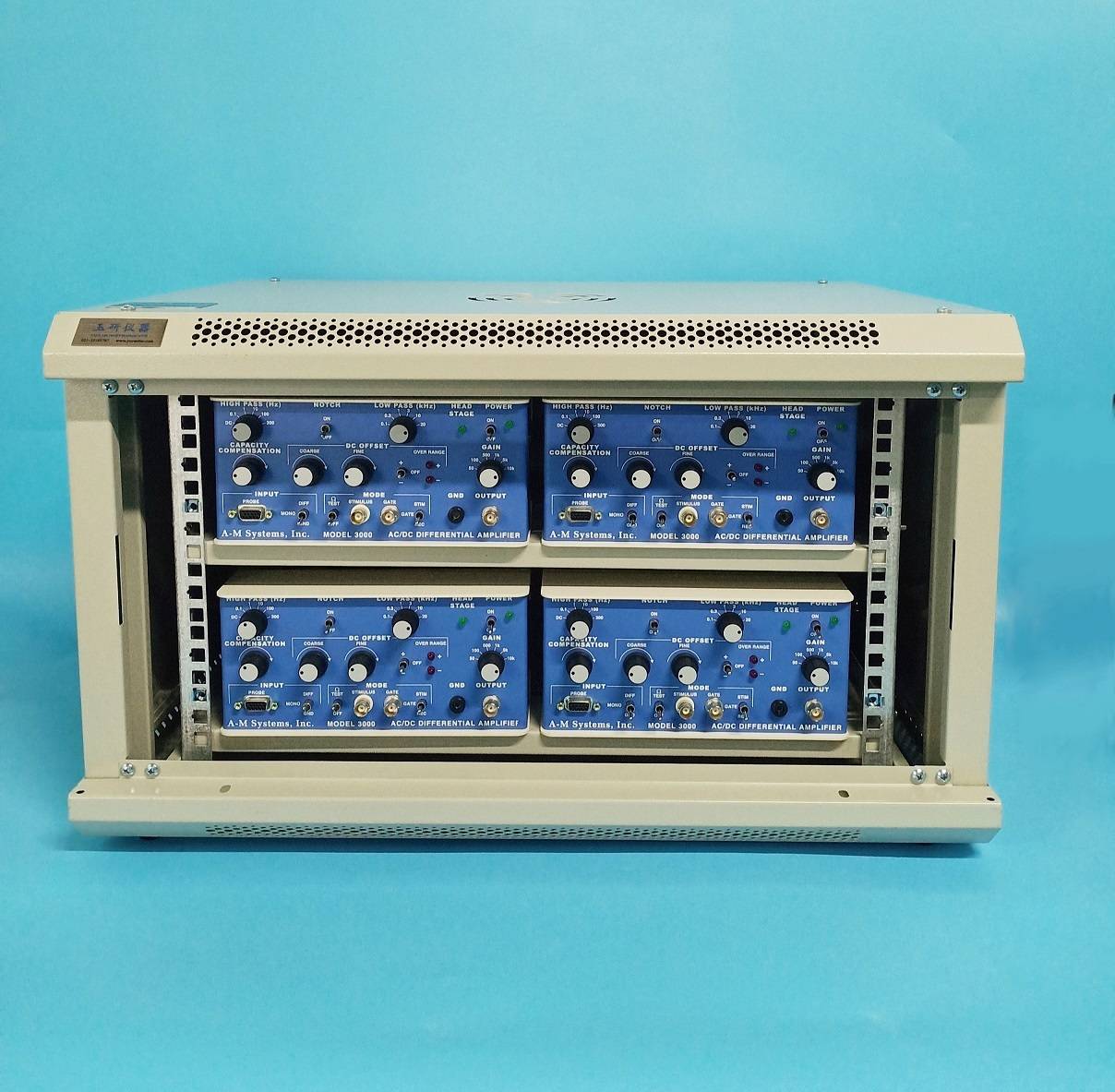

微电极放大器，是高增益AC/DC微分放大器，可用于低噪声的可兴奋组织的细胞外记录、EEG、EKG等记录。

Model 3600型 微电极放大器产品主要特点及参数：

11 gain settings from x2 to x20，000

8 high-pass filter settings from 0.3 Hz to 500 Hz

8 low-pass filter settings from 100 Hz to 20.0 kHz

TTL Control of instrument mode

Channel Monitors

Built-In Calibration signal

Common Reference Bus

Blanking

PC control capability

MATLAB® and LabVIEW SDK and drivers available

3U rackmount enclosure accommodates all 16 channels

Headstages for Model 3600 16-Channel Amplifier

16-Channel Stimulating & Recording Headstage

For simultaneous stimulation and recording on any combination (or all) of the 16 channels when paired with our Model 3600 Amplifier. Capped in the Omnetics Corporation nanominiature connectors， we can provide adapters for use with other electrode configurations， including the Michigan Probe. This headstage uses fast switching relays (microsecond switching times， not milliseconds!) to control signal paths between stimulating and recording modes.

Includes built-in recording output cable. Optional Stimulation control cable (#962050) is required to operate stimulation functions. Max current is 20 mA， with a ±10V voltage range.

16-Channel Record-Only Headstage

Microminiature x20 headstage with 16 amplified channels and an amplified reference electrode channel. The entire headstage is roughly the size of a penny， and features 0.025" connector spacing using Omnetics Corporation nanominiature connectors.

Does not include a recording output cable. Order #961150 Output Cable.

Input options include direct connections to electrodes or to a connector with small input leads (Product 963000). Adapters are available for the "Michigan Probe DIP electrode (Product 963200) or a larger pin connector (Product 963100). Please contact us for details.

Model 3600 Control Software

The Model 3600 is supplied with optional Windows control software. This software controls all features of the amplifier via a USB port (cable included).

The program also enables the storage of an unlimited number of 16-Channel parameter files， as well as provides a real-time notepad that logs changes in parameter settings or experimenter-added notations.

根据需求，还有其他多个型号可供选择：

Model 1800型 微电极放大器产品主要特点及参数：

2道交流放大器，相当于2台放大器

探头适用于高阻抗玻璃或金属电极的细胞外记录和刺激

低噪声：1.0μV（peak-peak）

输入阻抗：1011Ω

增益：100、1，000、10，000

具有低通、高通滤波以及50/60Hz带阻滤波

电压输出范围：±8V

Model 3000型产品主要特点及参数：

单道交流放大器

选择Stimulus模式，外部刺激器可输入刺激信号

Recording模式和Stimulus模式都可通过计算机控制

输入阻抗：10¹⁵Ω

增益：50-10，000

电容补偿：4-50pF

具有低通、高通滤波和带阻滤波

直流失调电位补偿：±250mV

体积小，可放置于屏蔽网内

噪声：1.8μV， p-p（10Hz-10kHz); 0.1fA/Hz

Model 1700型 微电极放大器产品主要特点及参数：

4道微分交流放大器，相当于4台放大器

低噪声：1.0μV（peak-peak）

输入阻抗：1011Ω

增益：100、1，000、10，000

具有低通、高通滤波以及50/60Hz带阻滤波

电压输出范围：±8V

Model 3500型 微电极放大器产品主要特点及参数：

13 gain settings from x2 to x20，000

8 high-pass filter settings from 0.3 Hz to 500 Hz

8 low-pass filter settings from 100 Hz to 20.0 kHz

TTL Control of instrument mode

Twin stimulation busses to pass current

Channel Monitors

Built-In Calibration signal

Common Reference Bus

Blanking

PC control capability

MATLAB® and LabVIEW SDK and drivers available

3U rackmount enclosure accommodates all 16 channels

Model 3500 Control Software

The Model 3500 is supplied with optional Windows control software. This software controls all features of the amplifier via a USB port (cable included).

The program also enables the storage of an unlimited number of 16-Channel parameter files， as well as provides a real-time notepad that logs changes in parameter settings or experimenter-added notations.
