产品简介

Cubes, Sliders and Rings

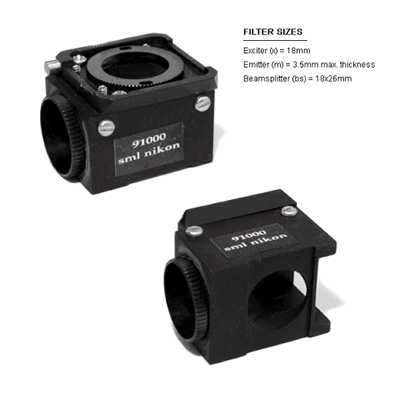

18mm Nikon Microscopes (Diaphot, TMD)

Part No: 9100

Olympus BH2

Part No: 91002

Leica Ploempak

Part No: 91004

Zeiss Axioline 3FL Slider

Part No: 91006

Leica DMIRB Filter Cube

Part No: 91009

Zeiss Axioline 5FL Slider

Part No: 91012

Zeiss Axio screws into turret

Part No: 91015

BX2 filter cube (U-MF2) For Olympus BX2 and IX2 models

Part No: 91018

Nikon TE2000/Ti

Part No: 91020

Olympus SZX RFL3 excitation holder

Part No: 91023

Nikon prism-to-dichroic conversion mount

Part No: 91026

Zeiss Axio Imager with tilted emission filter (push & click)

Part No: 91029

Laser TIRF for Nikon TE2000/Ti

Part No: 91032

Nikon Emission Filter Ring 18mm (for 91000 cube)

Part No: 91034

Nikon Emission Filter Ring 25mm (for 91001 cube)

Part No: 91036

BX3/IX3 filter cube (U-FF, U-M710)) For Olympus BX3 and IX3 models for 25mm filters

Part No: 91038

Laser TIRF for Olympus BX2 models

Part No: 91041

IX3-FFXL filter cube (U-M101) for Olympus IX3 models for 32mm filters

Part No: 91043

Nikon P2-EFLC filter cube for SMZ18 & SMZ25 Stereo Microscope with 25mm filters

Part No: 91046

Leica DMi8 standard filter cube, for 25mm filters. Fits 1mm-thick dichroics.

Part No: 91050

Nikon Eclipse/Quadfluor

Part No: 91001

Olympus IMT2 Filter Cube

Part No: 91003

Leica Arislan Filter Cube

Part No: 91005

Leica DM Filter Cube

Part No: 91007

Zeiss Axioline 4FL Slider

Part No: 91011

Zeiss Axioline 6FL Slider

Part No: 91013

Olympus CK40

Part No: 91017

Nikon filter cube for SMZ800 & SMZ1500 Stereo Microscope with 18mm filters

Part No: 91019

Olympus SZX RFL3 emission holder

Part No: 91022

Leica DM 2500, 3000, 4000, 5000, 6000

Part No: 91024

Zeiss Axio inverted 2F

Part No: 91027

Olympus XL

Part No: 91030

Nikon Excitation Filter Ring 18mm (for 91000 cube)

Part No: 91033

Nikon Excitation Filter Ring 25mm (for 91001 cube)

Part No: 91035

Zeiss Axio Filter Retaining Ring 25mm (for all cubes and sliders)

Part No: 91037

Olympus U-M1000 for CX41

Part No: 91040

Zeiss Axio TIRF*

Part No: 91042

Laser TIRF for Olympus BX3/IX3 models, for 25mm filters

Part No: 91044

Nikon P-EFLC filter cube for SMZ800n & SMZ1270 Stereo Microscope with 18mm filters

Part No: 91049

Leica DMi8 filter cube, for 25mm filters. Fits dichroics up to 3mm thick.

Part No: 91051

Neutral Density Beamsplitters (50/50, etc.)

21000 - 50/50 Beamsplitter

21001 - 80/20 Beamsplitter

21007 - 70/30 Beamsplitter

21008 - 20/80 Beamsplitter

21009 - 30/70 Beamsplitter

21011 - 90/10 Beamsplitter

21012 - 10/90 Beamsplitter

21014 - Silver sputtered non-polarizing 50/50 Vis Beamsplitter

Neutral Density Filters

ND 0.1 A

Type: ND

Coating Type: Sputter/Hard Coated

80.0% transmission (26mm - 36mm diameter)

Type: ND

Coating Type: Sputter/Hard Coated

63.0% transmission (25mm or smaller diameter)

Type: ND

Coating Type: Sputter/Hard Coated

50.0% transmission (25mm or smaller diameter)

Type: ND

Coating Type: Sputter/Hard Coated

32.0% transmission (37mm - 50mm diameter)

Type: ND

Coating Type: Sputter/Hard Coated

3.0% transmission (26mm - 36mm diameter)

Type: ND

Coating Type: Sputter/Hard Coated

1.0% transmission (37mm - 50mm diameter)

Type: ND

Coating Type: Sputter/Hard Coated

0.1% transmission (37mm - 50mm diameter)

Type: ND

Coating Type: Sputter/Hard Coated

PhotoFluor LM-75

Low-cost, high-power, ultra-stable metal-halide light source

Mounts directly to microscope with small footprint

High UV output and no flickering

Well-suited for routine fluorescence, FISH, and clinical applications

The PhotoFluor LM-75 is the only, direct-mount metal halide light source for fluorescence microscopy. With no liquid light guide and a built-in DC-ballast, the LM-75 delivers the highest possible intensity at the sample and extremely stable output. Together with pre-aligned, user-exchangeable lamp and ultra-quiet operation, the PhotoFluor LM-75 is an ideal replacement for a traditional mercury lamp.

Dimensions6.7″ x 7.1″ x 7.5″
Weight3.8 lbs – 5.2 lbs depending on configuration
Lamp lifetime1500 hrs guaranteed2000 hrs typical
Warm up and cool down time3 minutes
Output stability

1% RMS

Output range

340 nm – 800 nm

FeatureBenefit
Direct-mountable designEliminates need for a liquid light guide
User-exchangeable lampRequires no user alignment
Quiet operationIdeal for use in cramped rooms
No external controllerSaves bench space
High output intensityReduced exposure times
DC-ballastExtremely stable output
Long lamp lifeReduced down time

Fluorescence microscopy

FISH Imaging

Routine fluorescence imaging

Tissue culture imaging

Wafer inspections via reflected light port

机器视觉

111型号中心波长 (nm)带宽 (nm)视场角(degree)透过率OD
UV#1 Vision FilterMV380/603806050> 90%> 4
Narrow Violet Vision FilterMV405/204052050> 90%> 4
Narrow Indigo Vision FilterMV450/204502050> 90%> 4
Blue Vision FilterMV480/404804050> 90%> 4
Narrow Blue Vision FilterMV490/204802050> 90%> 4
Narrow Green#1 Vision FilterMV520/205202050> 90%> 4
Green Vision FilterMV525/405254050> 90%> 4
Narrow Green#2 Vision FilterMV532/205322050> 90%> 4
Orange Vision FilterMV585/405854050> 90%> 4
Narrow Orange Vision FilterMV590/205902050> 90%> 4
Red Vision FilterMV630/406304050> 90%> 4
Narrow Red Vision FilterMV635/206352050> 90%> 4
Narrow Dark Red Vision FilterMV660/206602050> 90%> 4
Dark Red Vision FilterMV660/406604050> 90%> 4
785nm NIR Vision FilterMV785/407854050> 90%> 4
850nm NIR Vision FilterMV850/408504050> 90%> 4
880nm NIR Vision FilterMV880/408804050> 90%> 4
Green/Red Dual Band Vision FilterMV526-25/628-3450> 90%> 4

MV380/60 - UV#1 Vision Filter

UV#1 Vision Filter

Type: MV

Wavelength (CWL): 380nm

Bandwidth (FWHM): 20nm

MV405/20 - Narrow Violet Vision Filter

Narrow Violet Vision Filter

Type: MV

Wavelength (CWL): 405nm

Bandwidth (FWHM): 20nm

MV450/20 - Narrow Indigo Vision Filter

Narrow Indigo Vision Filter

Type: MV

Wavelength (CWL): 450nm

Bandwidth (FWHM): 20nm

MV480/40 - Blue Vision Filter

Blue Vision Filter

Type: MV

Wavelength (CWL): 480nm

Bandwidth (FWHM): 40nm

MV490/20 - Narrow Blue Vision Filter

Narrow Blue Vision Filter

Type: MV

Wavelength (CWL): 490nm

Bandwidth (FWHM): 20nm

MV520/20 - Narrow Green#1 Vision Filter

Narrow Green#1 Vision Filter

Type: MV

Wavelength (CWL): 520nm

Bandwidth (FWHM): 20nm

MV525/40 - Green Vision Filter

Green Vision Filter

Type: MV

Wavelength (CWL): 525nm

Bandwidth (FWHM): 40nm

MV532/20 - Narrow Green#2 Vision Filter

Narrow Green#2 Vision Filter

Type: MV

Wavelength (CWL): 532nm

Bandwidth (FWHM): 20nm

MV585/40 - Orange Vision Filter

Orange Vision Filter

Type: MV

Wavelength (CWL): 585nm

Bandwidth (FWHM): 40nm

MV590/20 - Narrow Orange Vision Filter

Narrow Orange Vision Filter

Type: MV

Wavelength (CWL): 590nm

Bandwidth (FWHM): 20nm

MV630/40 - Red Vision Filter

Red Vision Filter

Type: MV

Wavelength (CWL): 630nm

Bandwidth (FWHM): 40nm

MV635/20 - Narrow Red Vision Filter

Narrow Red Vision Filter

Type: MV

Wavelength (CWL): 635nm

Bandwidth (FWHM): 20nm

MV660/20 - Narrow Dark Red Vision Filter

Narrow Dark Red Vision Filter

Type: MV

Wavelength (CWL): 660nm

Bandwidth (FWHM): 20nm

MV660/40 - Dark Red Vision Filter

Dark Red Vision Filter

Type: MV

Wavelength (CWL): 660nm

Bandwidth (FWHM): 40nm

MV785/40 - 785nm NIR Vision Filter

785nm NIR Vision Filter

Type: MV

Wavelength (CWL): 785nm

Bandwidth (FWHM): 40nm

MV850/40 - 850nm NIR Vision Filter

850nm NIR Vision Filter

Type: MV

Wavelength (CWL): 850nm

Bandwidth (FWHM): 40nm

MV880/40 - 880nm NIR Vision Filter

880nm NIR Vision Filter

Type: MV

Wavelength (CWL): 880nm

Bandwidth (FWHM): 40nm

MV526-25/628-34 - Green/Red Dual Band Vision Filter

Green/Red Dual Band Vision Filter

Type: MV

拉曼滤光镜

RET266/3x

Type: EX

Wavelength (CWL): 266nm

Bandwidth (FWHM): 3nm

RET633/5x

RET633/5x

Type: EX

Wavelength (CWL): 633nm

Bandwidth (FWHM): 5nm

RET1064/7x

RET1064/7x

Type: EX

Wavelength (CWL): 1 064nm

Bandwidth (FWHM): 7nm

二向色镜(Dichroic Mirror)

RT266rdc

RT266rdc

Type: BS

Wavelength (CWL): 269nm

RT633rdc

RT633rdc

Type: BS

Wavelength (CWL): 650nm

RT1064rdc

RT1064rdc

Type: BS

Wavelength (CWL): 1 070nm

长通发射片(Longpass Emission)

RET270lp

RET270lp

Type: EM

Wavelength (CWL): 285nm

RET638lp

RET638lp

Type: EM

Wavelength (CWL): 650nm

RET1072lp

RET1072lp

Type: EM

Wavelength (CWL): 1 080nm
