SL251型手动液压式压样机

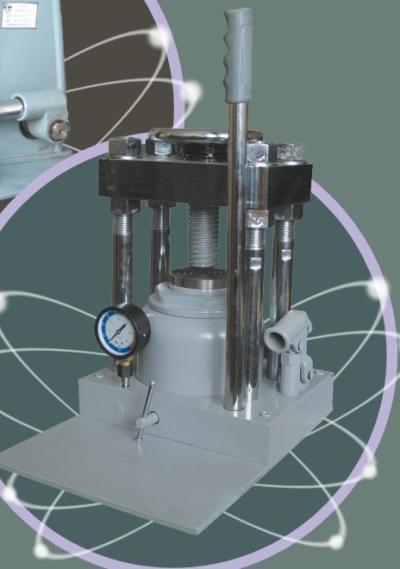

SL251型手动液压式压样机的图片
参考报价:
面议
品牌:
关注度:
553
样本:
暂无
型号:
产地:
上海
信息完整度:
典型用户:
暂无
索取资料及报价
认证信息
高级会员 第 2
名 称:上海盛力仪器有限公司
认 证:工商信息已核实
访问量:28397
手机网站
扫一扫,手机访问更轻松
公司品牌
品牌传达企业理念
产品简介
仪器简介:

SL251型手动液压式压样机是为冶金、有色金属、化工、商检、地矿、建材等领域进行物质元素分析将粉末压成试片,给X荧光光谱分析仪提供试样的机器。它采用油压传动方式,由杠杆作用于小油缸,通过其底部油路加压至大油缸,使其产生几十倍于对小油缸下压力的压力。所以手动用力小。其油路采用集成系统。众所周知液压系统**的缺陷就是泄漏,而油路的集成侧减少了泄漏机会,从而提高了可靠性。

本公司提供的为采用*广泛且可重复使用的钢环所研制的模具,为**产品,它结构简单,无论装料、脱模、清洁均极其方便,深受用户欢迎。

SL251 Manual Hydraulic Sample Compressing Machine is a type of sample compressing machine designed for making powder into sample test plate for substance and element analysis with X fluorescence spectrum analyzer in the field of metallurgy, non-ferrous metal, chemical industry, commodities inspection, geological mining, building material, etc. The pressure is initialized with a lever and was transmitted from a small oil cylinder to a big oil cylinder through the oil way at the bottom of the machine, and brings a pressure in the big cylinder scores of times bigger than that in the small cylinder. Not much manual force is needed. As everyone knows, the biggest limitation of hydraulic system is leaking oil. Integrated oil way greatly reduces the chance of leaking oil and hence improves reliability.

Our company provides all kinds of die set with mould frame made of aluminum box, plastic ring, boric acid, low pressure polyethylene, and steel ring, especially provides full range of patented die sets with steel mould frame for repeated use, which are very popular among our clients due to their simple structure and extremely easy filling, demoulding and cleaning.

技术参数:

额定压力:400kN

工作台面积:φ82mm

工作台上下开距:0—90mm

**工作行程:55mm

柱开距:155mm

长宽高:380×265×390(mm)

净重:55kg

手柄长度:490mm

Rated pressure: 400kN

Area of working platform: φ82mm

Worktable opening span: 0--90mm

Max. Travel: 55mm

Pole Opening Span: 155mm

Dimension (L/W/H) : 380×265×390(mm)

Net weight: 55kg

Length of Handle: 490mm
